Aqua Clean Single

The Single-series is intended for washing (without rinsing) of components when your cleanliness requirements can be fulfilled with a 1-stage process. The machines are mainly intended for washing of components after machining in the machine working industry, but they are also well suited for maintenance workshops. These machines can also be automated and even placed in robot cells.

If your cleanliness requirements are even higher, the solution is a multi-stage system with e.g. washing, rinsing and drying. For these needs, please see our MULTI-series.

These parts washers are manufactured in stainless steel and consists of a heat insulated enclosed cabinet with a lifting door, rotating spray system and a tank system. A load platform or a load trolley is placed in front of the cleaning machine for the loading and unloading phases.

The washing and degreasing process is carried out with a rotating spray system with built-in nozzles. The hot wash liquid is sprayed from all directions onto the components with a high mechanical effect.

Aqua Clean machines can also be supplied with a reciprocating spray systems. The system is used in situations where the length of the components to be cleaned is much longer than their width.

As a new feature in the Aqua Clean Single series, models with vertical pumps are available. These significantly increase the efficiency of the washing result, while providing quiet running noise, better energy efficiency and ease of maintenance.

Ask for a quote
Aqua Clean ACV-2.5
ACV-2.5-C12-LD Open door

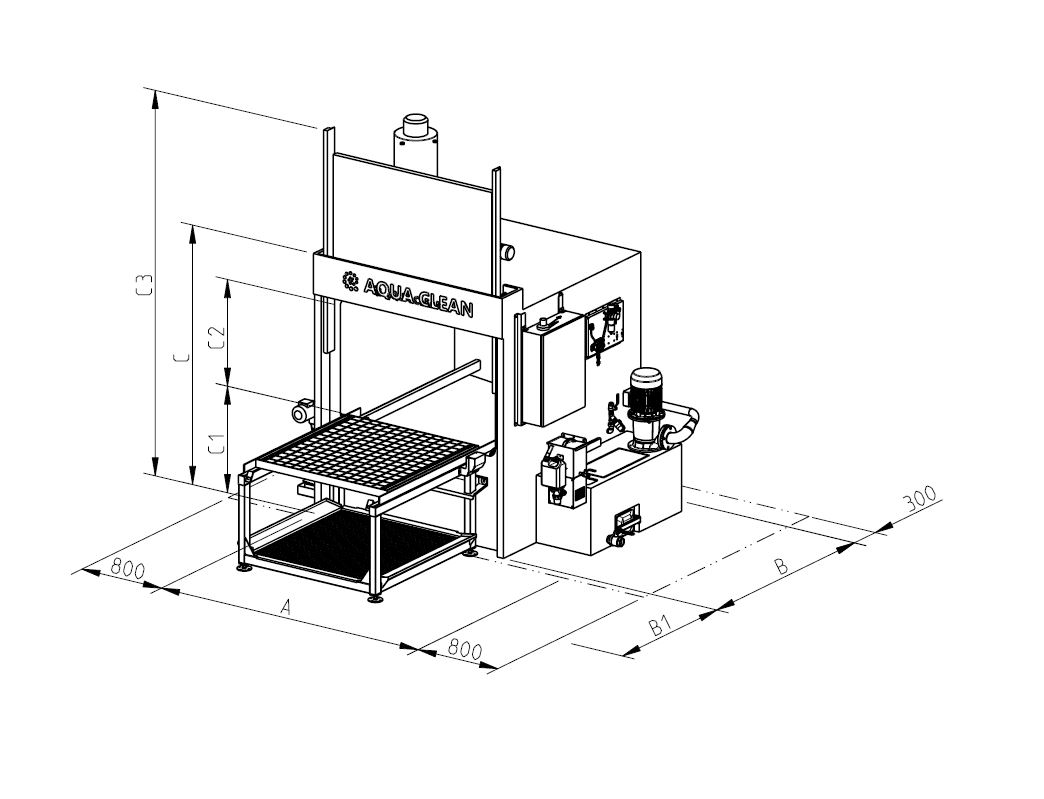

Machine dimensions can also be customised.

ACV 1.3 ACV 1.7 ACV 2.0 ACV 2.5 ACV 2.9
Width A mm 2250 2650 2950 3470 4340
Depth B mm 1690 1990 2290 2790 3290
Depth B1 mm 1170 1470 1770 2270 2770
Height C mm 2320 2320 2320 2420 2550
Height C1 mm 910 910 910 910 1080
Height C2 mm 900 900 900 900 900
Height C3 mm 3390 3390 3390 3390 3650
Carriage L x W mm 1000 1300 1600 2000 2400
Component max L x W mm 1000 1300 1600 2000 2400
Component max height mm 900 900 900 900 900
Component max diameter mm 1100 1500 1800 2300 2700
Carriage load capacity kg 800 800 1000 2000 4000

Aqua Clean Single series can be supplied with optional accessories, to achieve further benefits needed.
Accessories 2017 (pdf)

Oil skimmer OS-AC Separates oil from the wash liquid with a rotating disc Increased wash liquid life
Oil Separator OS Separates oil from the wash liquid after the washing process Increased wash liquid life
Load platform LP Mounted in front of the machine, supports the load carriage when it is outside of machine More comfortable and ergonomic operation
Load trolley LT Wheeled trolley for transporting the load carriage Increased productivity
T-conveyor, manual TC Load carriage can be moved sideways when outside of machine Increased productivity
Powered load carriage MC Controlled with push buttons, gear motor equipped with a frequency converter More comfortable and ergonomic operation
Through going conveyor system TS Transports the carriage from the loading station into the machine and through to the unloading station Increased productivity
By-pass filter CF Pumps liquid through filter unit, returns filtered liquid into the tank via spray bars fitted with nozzles Prevents pariculate build up and sedimentation on the bottom of tank
Fine filter FF Liquid is pumped through a full-flow filter with pressure switch and alarm Keeps solid particles from being sprayed on components
Automatic water refill AT Monitors and maintains proper tank water level Helps ensure wash quality
Dosing system DU Adds required amount of detergent when filling tank Helps ensure wash quality
Steam extractor AF Extracts steam from washing cabinet after washing process Steam-free door opening
Steam condenser FX Extracts and cools down steam and leads back to water tank Easier installation without channeling, saves energy
Motor Driven Spray MD Rotates the spray system at set speed Improved wash quality
Spray gun and lance SL Spray gun and lance installed on the side of the machine Enables manual spraying of objects
Safety sensor for door TI When triggered, a safety sensor stops door movement and fully opens door Increased safety
Two lifting doors LD2 Additional door on rear of machine Increased productivity
