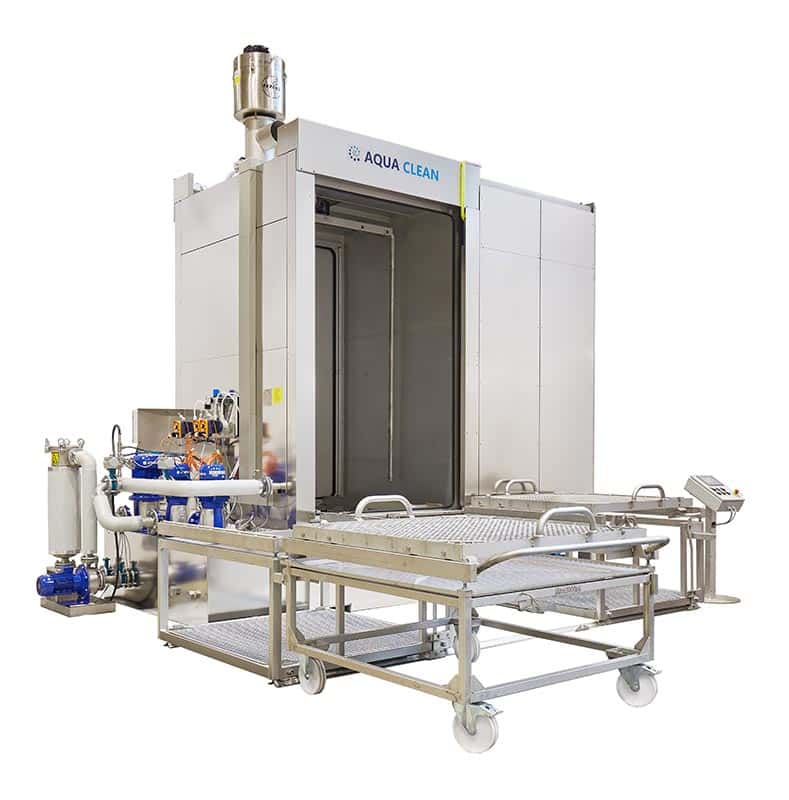

The customer had been using a 2-stage Sampo Rosenlew washing machine that had served for about 20 years, but its capacity no longer met future cleaning requirements. In connection with a factory expansion, we delivered a 3-stage ACV-1.7-C24-3SD2 washing machine, designed for cleaning 2.4 m components in a vertical position.
The efficiency of the washing machine was enhanced with a dual-door design that enables through-feed operation and a T-rail system installed at the front door. Transfer trolleys can be connected to the T-rail carriages, allowing components awaiting washing to be stored in front of the machine. With multiple wash carriages, the T-rail conveyor, and transfer trolleys, the washing machine achieves exceptionally high capacity. In addition, the transfer trolleys make it possible to transport components within the factory environment without time-consuming intermediate loading.
The service life of the cleaning liquid is maintained with efficient oil separation using an Aqua Clean OS-series oil separator. The machine was also equipped with Aqua Clean’s own side-stream filtration system, which removes solid particles from the liquid and prevents sludge from accumulating at the bottom of the tank. The filtration system includes an easy-to-replace bag filter, enabling particle removal down to below 50 µm when required.
This project is yet another example of Aqua Clean’s high-quality expertise in delivering industrial cleaning solutions. Don’t hesitate to contact our sales team with your cleaning requirements, and together we’ll find the right solution from our wide range of options.
